TOYAN V8 Engine FS-V800WC Diy kit 28cc Nitro Engine - Build Your Own V8 Engine - V8 Engine Model Kit That Works

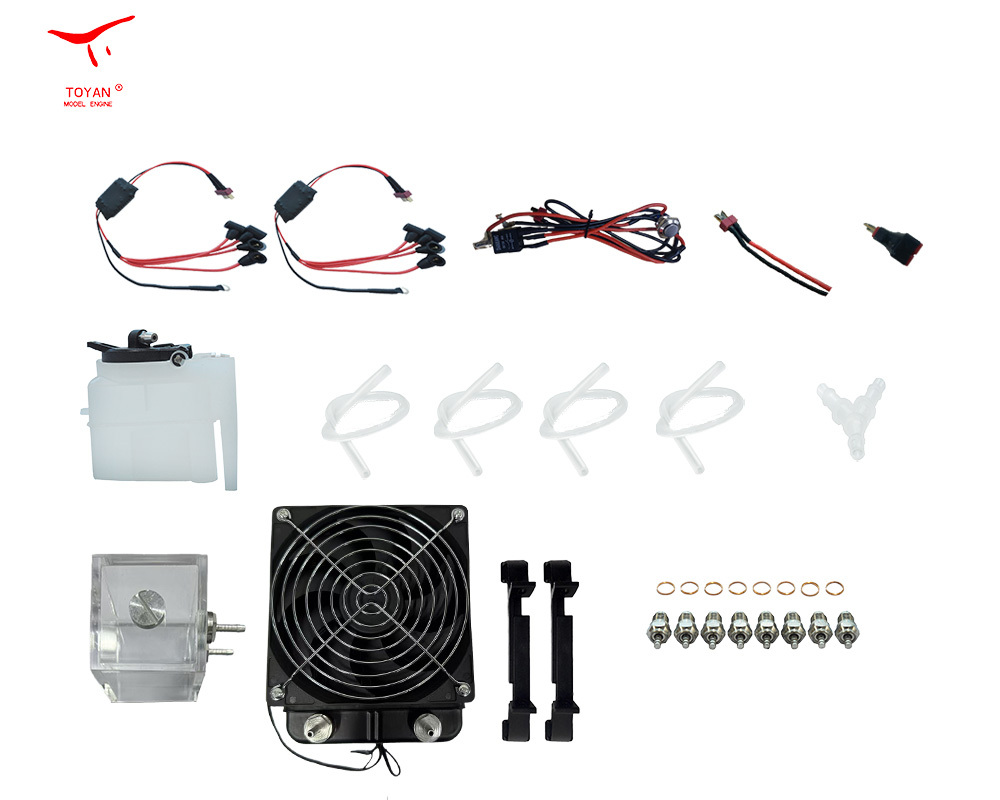

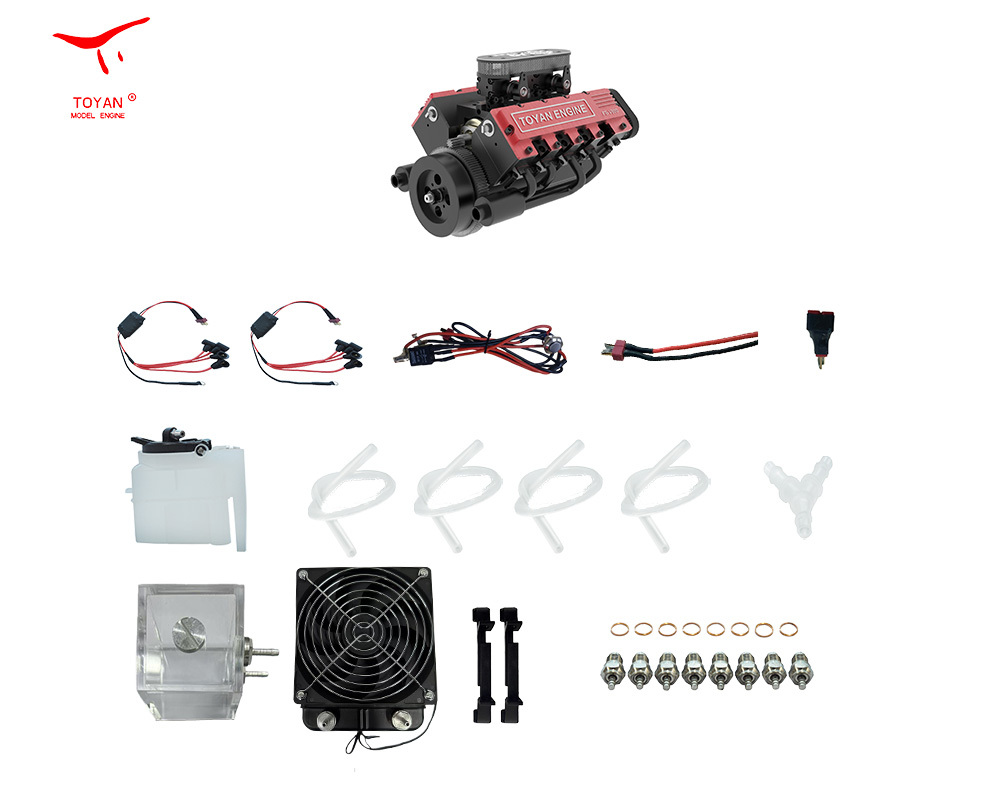

Parameters:
.Model: FS-V800WC
.Form: KIT Version
.Scale: 1/10
.Cylinder: V-type 8 Cylinder
.Stroke: 4 Stroke
.Displacement: 28cc (3.5cc* 8)
.Bore: 16.67mm
.Stroke: 17.00mm
.Angle: 90°
.RPM: 1800-12500rpm
.Power: 4.35ps@11200rpm
.Cooling Mode: Water cooling
.Starting Mode: Electric (including starting motor)
.Ignition Mode: 2 4-in-1(or 8-in-1) stabilized ignition modules
.Type of Electric Plug: F-type 4-stroke electric plug
.Lubrication Mode: Splash Lubrication (add a small amount of grease on the cam)
.Fuel Type: 20-25% nitro fuel
.Starting Voltage: 7.4V lithium battery (not included)
.Product Dimensions: 12.34 x 3.2 x 12.73cm
.Product Weight: 2050g
.Package Dimensions: 17 x 15 x 4cm
.Package Weight: 2950g



1. DIY Fun
Made of highly precise parts
Assemble inline with the instructions
To walk deeply through the mechanical principle

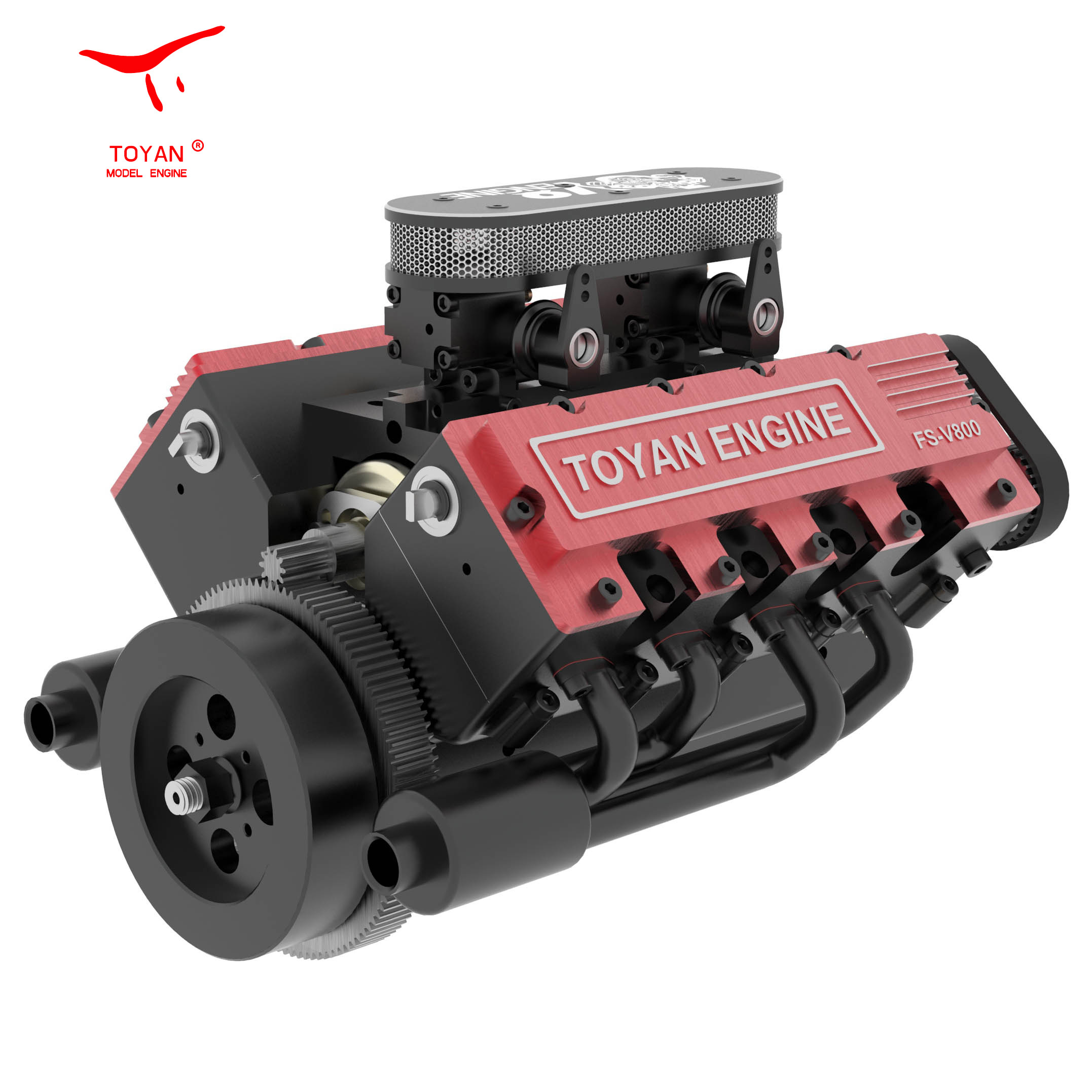

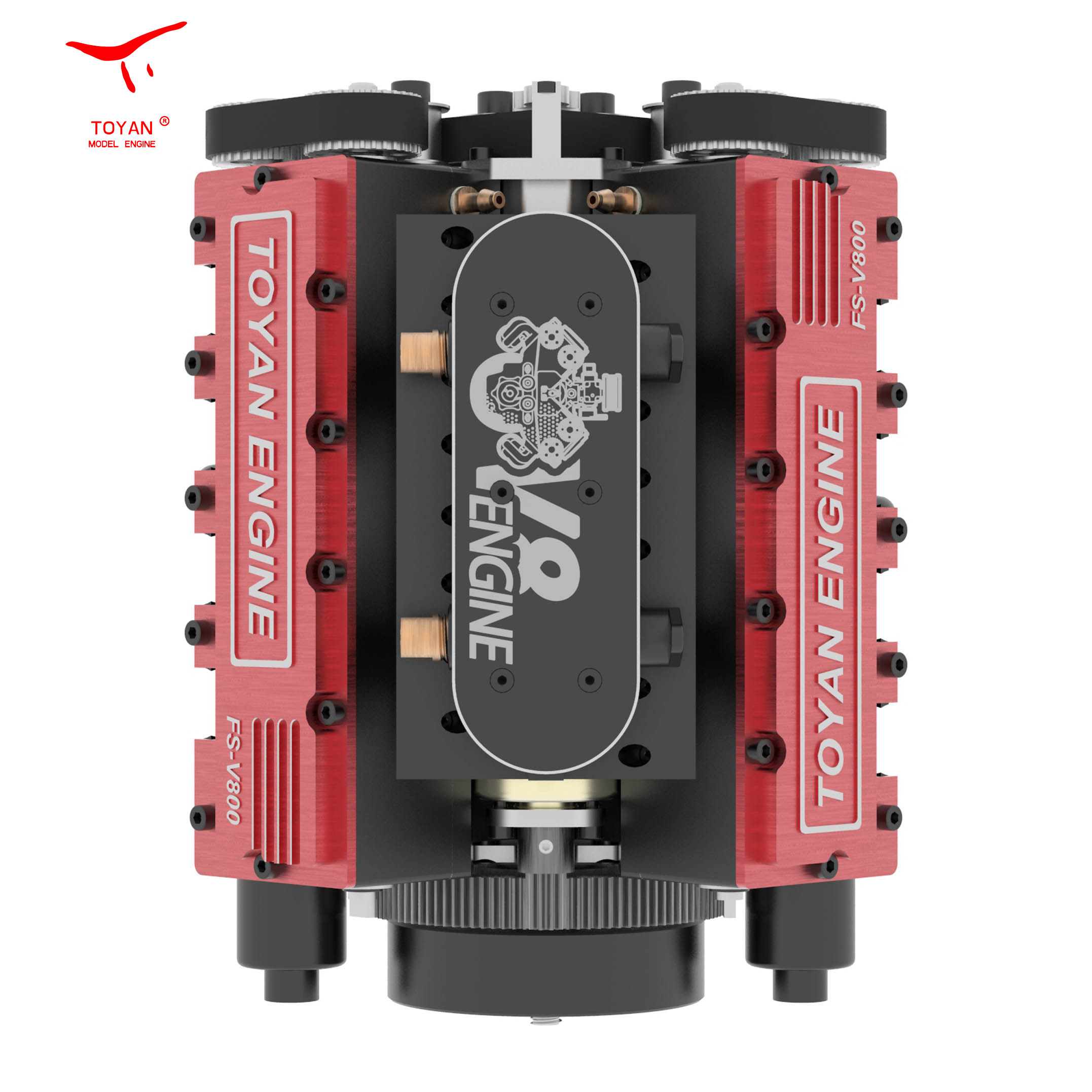

2.High Simulation Miniature

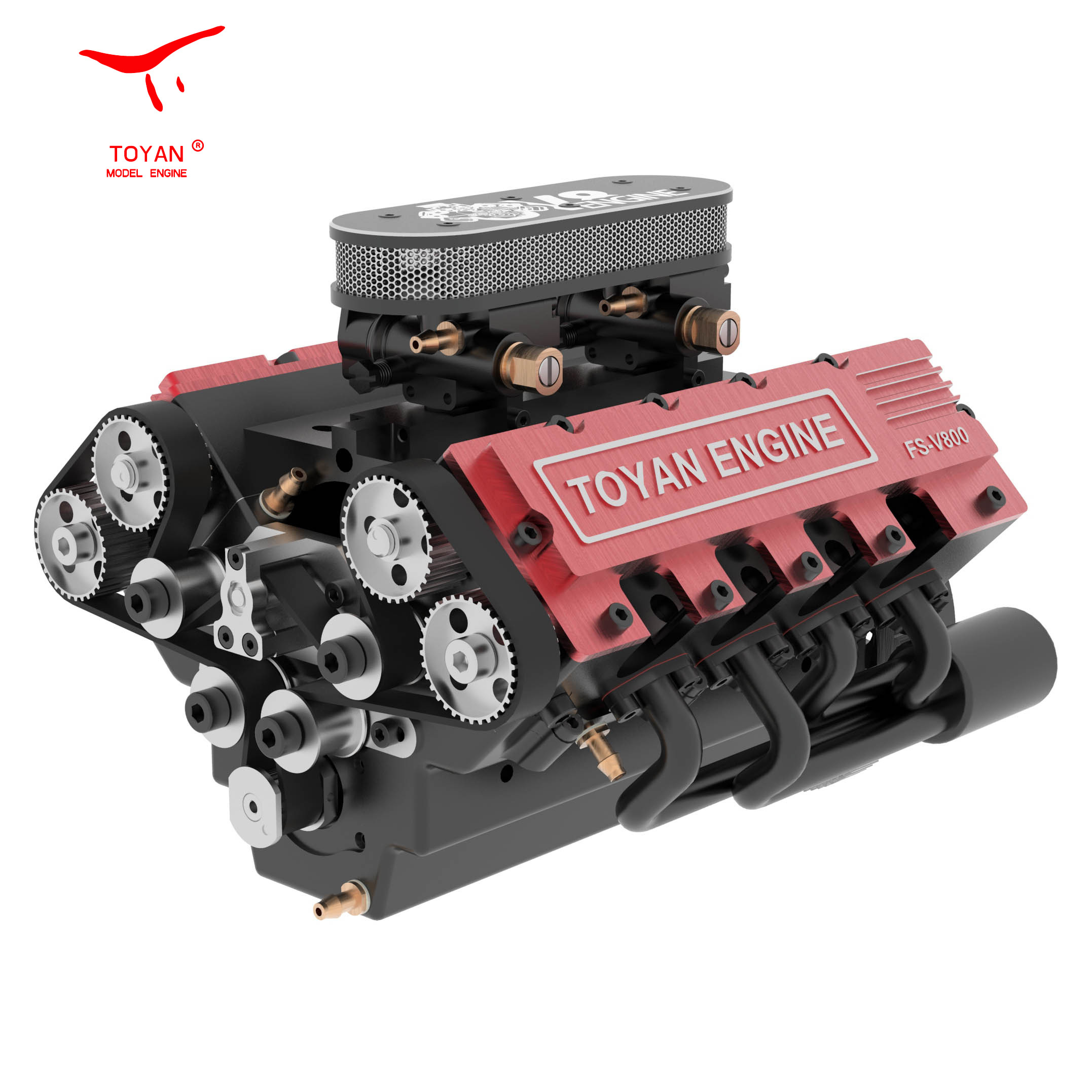

Designed with red sports elements Highly authentic appearance1:10 scale realistic engine

3.Long Stroke
The cross crankshaft is the blueprint for the engine design, effectively providing higher torque. Customized flexible oil seal keeps sealing performance in high speed operation.

4. Mechanical water cooling pump
The power of the pump, come from the crankshaft provides circulation power for the coolant liquid, and then in conjunction with the cooling fan to strengthen the self-cooling performance.

5.Integrated Machining Crankshaft
Built with 90 degree cross crankshaft structure, the engine features smoother operation, increasingly sensitive acceleration response with the highest speed up to 12500 RPM.

6. Precise Rocker Arm
Independent Intake & Exhaust Design
More Accurate Valve Switch
Alloy Rocker Arm

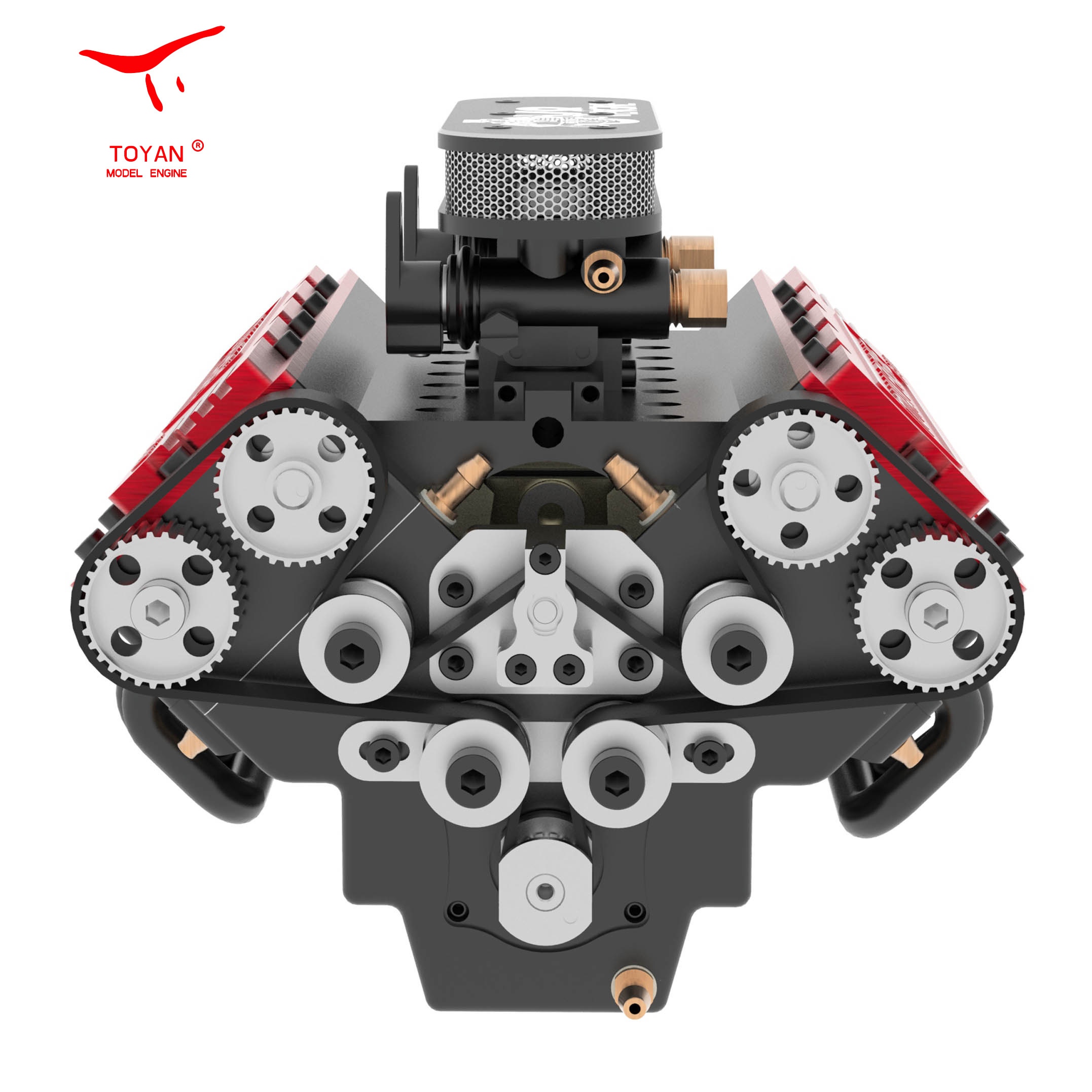

7.Dual Synchronous Pulley
The timing structure of the dual synchronous pulley minimizes the risk of gear jumping in high speed operation.

8. Precise Carburetor
The engine is designed with the brand new carburetor with pump for astoundingly accurate adjustment and superior response sensitivity of the throttle and more stable operation to users.

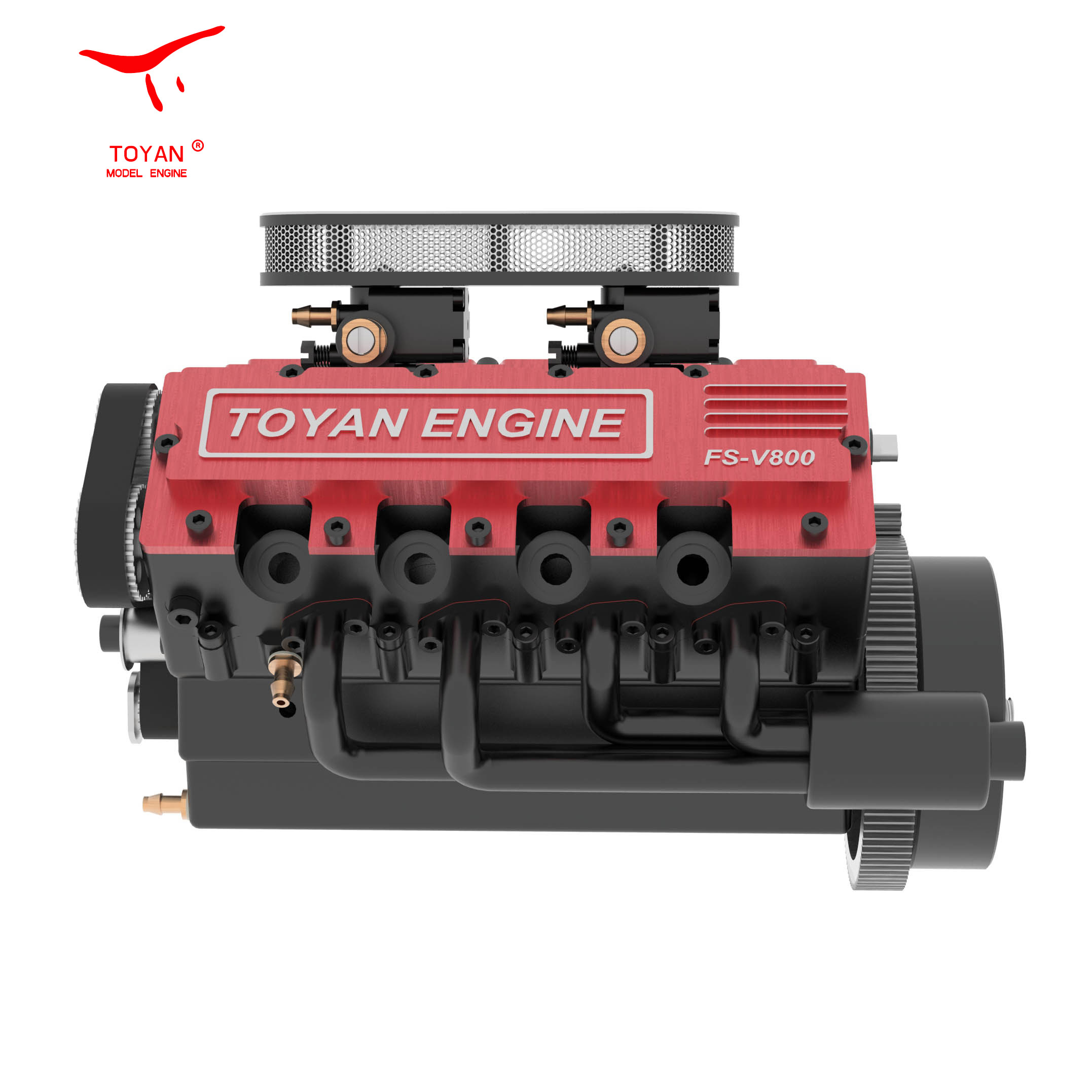

9. Integrated Exhaust Pipe
The small all-metal exhaust manifold provide the engine a more vigorous and powerful sound.

10. Lightweight
The lightweight structure of the engine enables impressive compatibility with RC models and greatly improved output ratio of the unit power.

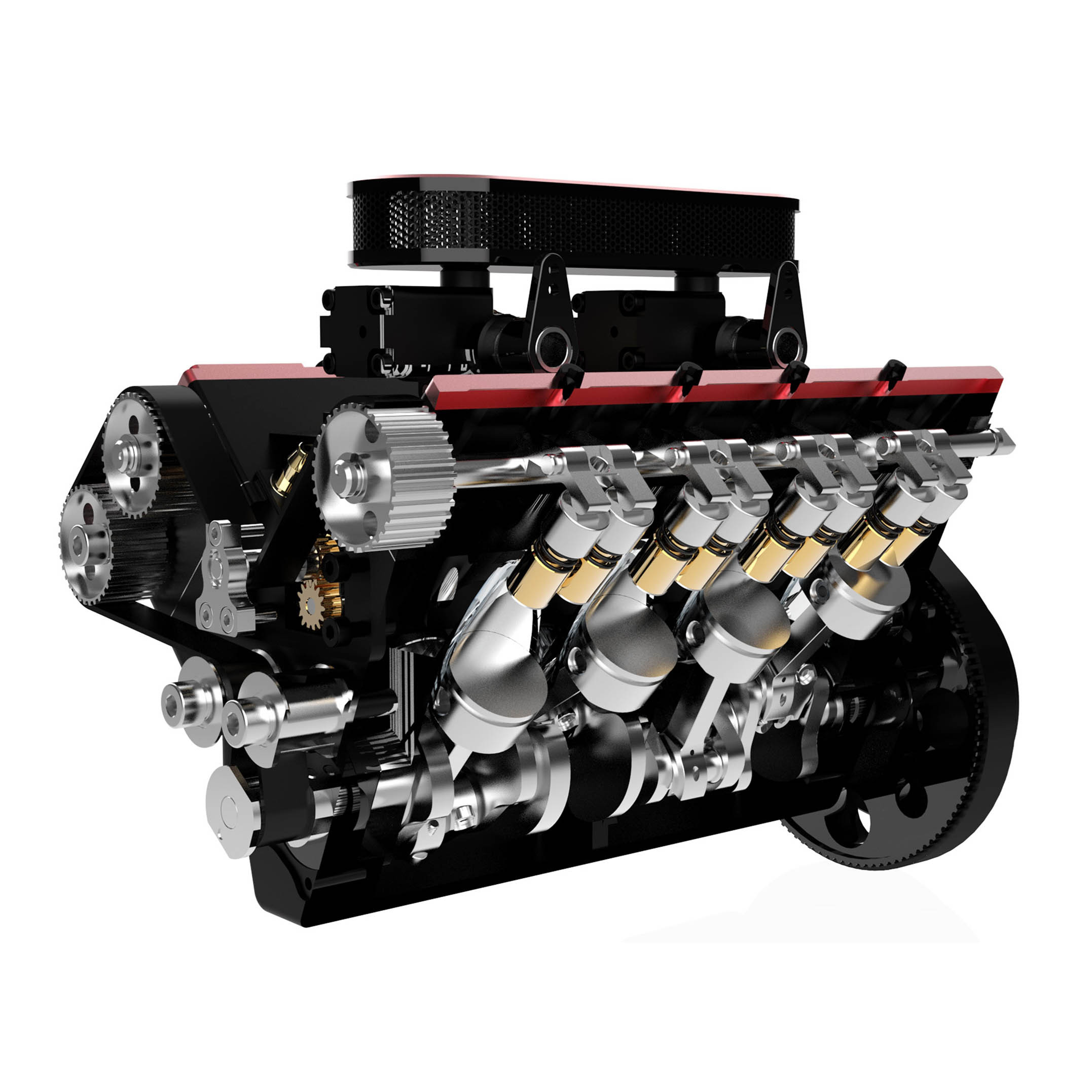

11. Stereoscopic Cross-section Drawing

12. Wide Application
This TOYAN V8 Engine makes a superb desktop power engine model to play, a tool for RC model cars or boats modification, a teaching aid for physical mechanical experiments and a high-end holiday gift for model enthusiasts.

1.Piston ring already assembly inside the cylinder sleeve.

2.The questions regarding too tight for crankshaft
     2-1.there are 3 support frame,please assembly firstly for the middle one then 2 side frame,Test if rotating well before next
    2-2.The 2 point on connecting rod shoukd match exactly ,the side of points must close to the side of crank .
    2-3.when you assembly the screws on connecting rod,please Even tight  firstly,and then tighter to finish assembly.
    2-4.Once you finish assembly for one connecting rod,pls test if crankshaft rotating well then go on.

3.All touching face of metal should adding engine grease,such as connecting rod and crank throw,crankshaft and copper bush,cylinder sleeve and pistion,pistion pin and connecting rod,camshaft and rocker arm.

4.The screws of cylinder head must tight from middle to side,directions from 1-10

5.Avoid O-ring falling off when installing inlet pipe.

6.Pay attention to the direction when assembly starting pulley. The iron shell is inside and the rubber shell is outside .

7.Driving gear and Driven gear component must interdigitation and then tight the 2 screws of M2.5*6 of motor bracket.

8.The channel of flywheel aligns with the pin(2*12) on the crankshaft.

9.Attention of Install belt in the direction of timing point.
