TOYAN 4 Stroke Methanol Engine Model DIY FS-S100AC Engine Enginediy Kit For 1:10 1:12 1:14 Model Car Ship RC Airplane

SKU: FS-100AC

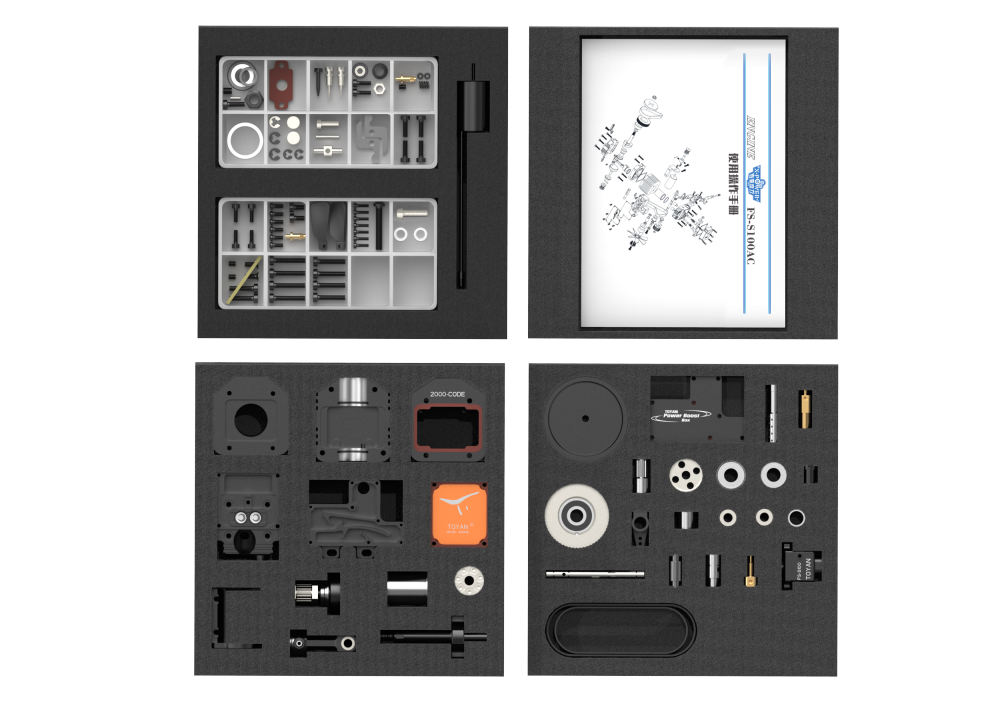

1 * TOYAN FS-100AC,diy KIT
1* Instructions

Not including Engine Starting accessories
0.0 (0 Reviews)
1 Sold
$0.00 $299.99
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • TOYAN 4 Stroke Methanol Engine Model DIY FS-S100AC Engine Enginediy Kit For 1:10 1:12 1:14 Model Car Ship RC Airplane
  • TOYAN 4 Stroke Methanol Engine Model DIY FS-S100AC Engine Enginediy Kit For 1:10 1:12 1:14 Model Car Ship RC Airplane
  • TOYAN 4 Stroke Methanol Engine Model DIY FS-S100AC Engine Enginediy Kit For 1:10 1:12 1:14 Model Car Ship RC Airplane
  • TOYAN 4 Stroke Methanol Engine Model DIY FS-S100AC Engine Enginediy Kit For 1:10 1:12 1:14 Model Car Ship RC Airplane
  • TOYAN 4 Stroke Methanol Engine Model DIY FS-S100AC Engine Enginediy Kit For 1:10 1:12 1:14 Model Car Ship RC Airplane
  • TOYAN 4 Stroke Methanol Engine Model DIY FS-S100AC Engine Enginediy Kit For 1:10 1:12 1:14 Model Car Ship RC Airplane
  • Description

Parameter:

Material: Aluminium Alloy + Alloy Steel
Cylinder Diameter: 17.0mm
Piston Diameter: 16.6mm
Displacement: 3.5cc
Output Power: 0.5ps horsepower
Speed: 2500-13500rpm
Machine Weight: about 1.7kg
Starting Battery: 7.4V 20C lithium battery
Battery Capacity: 2400mAh
Charging Time: 4h
Fuel Tank Capacity: 90mL
Running Time: 40min
Product Weight: 1710g
Package Dimensions: 26 x 16 x 20cm
Package Weight: 2000g
Packing: Box

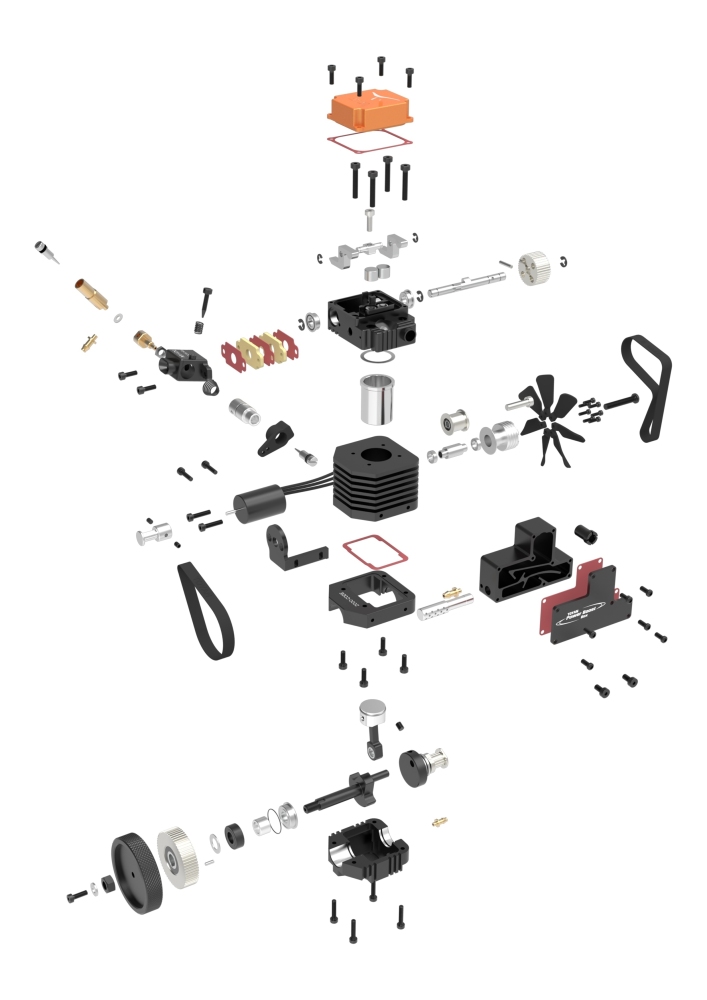

DIY ASSEMBLY ENGINE MODEL: It is a DIY Version model, needs to be assembled by yourselves according to the instructions. It can be mounted on 1:10, 1:12, 1:14 scale model car or model ship, model aircraft or other equipment. Can also be used for classroom demonstration, teaching aids.
WORKING PRINCIPLE: Using methanol as fuel- Not included in the package. The process of moving from one end of the cylinder to the other when the piston reciprocates within the cylinder is called a stroke. The four-stroke engine is divided into an intake stroke, a compre-ssion stroke, a power stroke, and an exhaust stroke.
OPERATION: The ignition part is connected to the corresponding spark plug cap and then connected to the voltage regulator module, and finally connected to the 7.4v T-plug battery. The fuel part is the fuel tank connected to the oil pipe and connected to the engine. The starting part: after 11v T-plug battery connects to the ESC and simulator, and start the motor. The starting motor is attached.
The additional accessories for starting this product: Spark plug + glow plug cap + start ESC + 7.4v T-plug battery + 11.1v T-plug battery + methanol fuel + fuel tank + tubing. NOTE: These accessories are not included in the package, you can buy it according to the actual situation. These products are not special products, are general products. Other model engine accessories can also be used for this product.
Piston Diameter: 16.6mm; Displacement: 3.5cc; Output Power: 0.5ps Horsepower; Speed: 2500-13500 RPM.
